The Alice LTC Timecode DA is a 19” rack mounted unit provides longitudinal timecode via a mixture of connection combinations up to twelve outputs in two banks of six. Each bank of outputs are adjustable via a front panel multi-turn trim potentiometer.


The front panel has a large illuminated LCD display showing timecode. The display can also be programmed to show your company name or other message on boot-up. These options can be requested at the time of ordering. Uses include, on-location shooting with PSC cameras and portable audio mixers that require a jammed LTC timecode signal, outside broadcast trucks or fixed installations that require timecode to be sent to vision mixers, EVS, audio mixing desks and studio clocks etc.


Available versions:

Type A: XLR input and 6 XLR and 6 BNC outputs

Type B: XLR input and 12 XLR outputs

Type C: BNC input and 12 BNC outputs


Technical Specification

Input impedance: internally selectable 20k ohms or 600 ohms balanced
Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz ±0.2dB
Phase shift: 20Hz <1° 20kHz<5°
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain – Ref + 8dBu output
Distortion: (THD) + 8dBu output: 40Hz 0.006% – 1kHz 0.006% 10kHz 0.02%
Output impedance: <1 ohm balanced and floating
Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms 0dBu = 0.775 volts RMS

100% manufactured in the UK

Mains supply: 85v to 285v AC operation
Power consumption: 20VA
Case details: 1U 19″ rack mounting, overall depth 165mm
Shipping weight: 1.95Kg

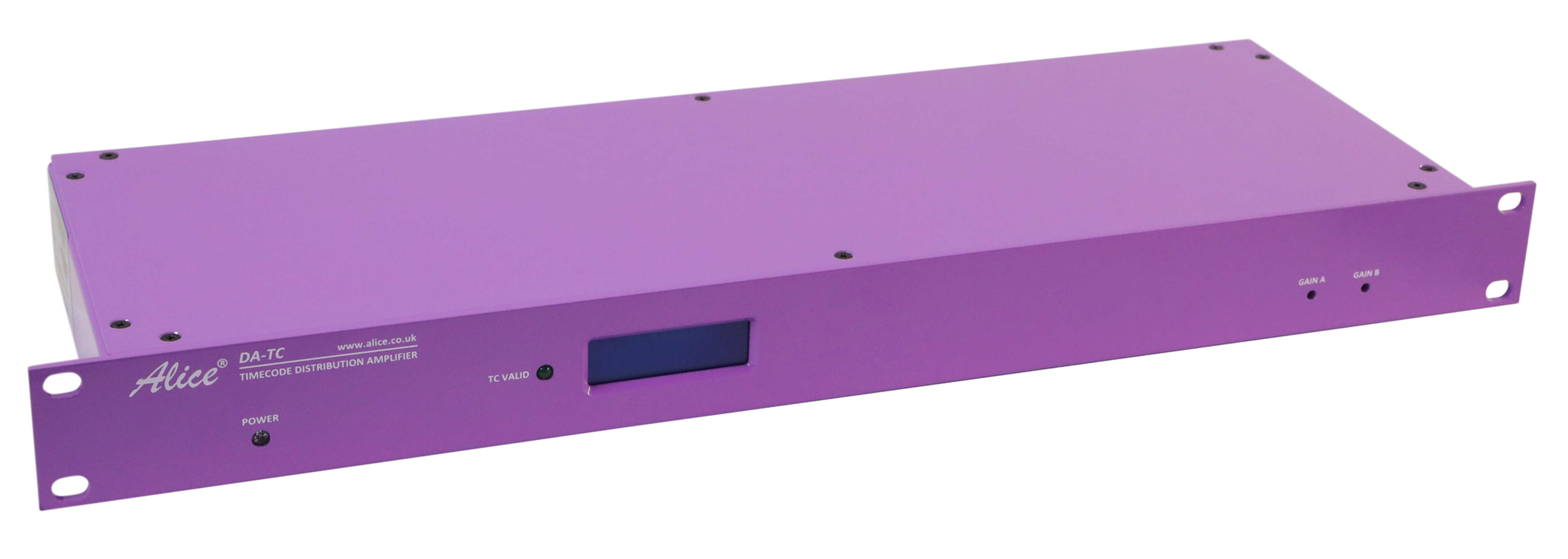

Alice LTC Timecode DA
